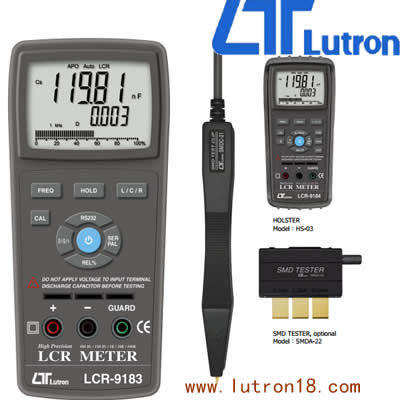

LCR-9183 专业级LCR表
- 产品名称：LCR-9183 专业级LCR表
- 产品型号：LCR-9183
- 保修时间：LCR-9183自购买日起一年保修
- 生产单位：台湾路昌电子企业股份有限公司
- 咨询热线：020-29123869
- 浏览次数：
LCR-9183 专业级LCR表 特点、参数、规格
LCR-9183简介
19999 / 1999位数双窗口显示器
自动判别 电感 / 电容 / 电阻及测量
电感：200.00uH ~ 2000.0H
电容：2000.0pF ~ 2.000uF
电阻：20.000 ~ 200.0M奥姆
串联 / 并联测量模式选择
DCR 模式2000.0 ~200.0MΩ
测量频率点：100Hz / 120Hz / 1KHz / 10kHz / 100KHz
测量 Ls / Lp / Cs / Cp 及 D / Q / θ / ESR 参数
可记录最大值、最小值及读值锁定
Size：193 X 88 X 41mm
电器规格 (23±5 ℃)
DCR 电阻 (Resistance)
|
Range |
Accuracy |
Remark |
|
20 Ω |
± ( 0.8% + 5d ) |
After Short CAL. |
|
200 Ω |
± ( 0.8% + 5d ) |
|
|
2000 Ω |
± ( 0.8% + 5d ) |
|
|
20 KΩ |
± ( 0.8% + 5d ) |
|
|
200 KΩ |
± ( 0.8% + 5d ) |
|
|
2000 KΩ |
± ( 0.8% + 5d ) |
After Open CAL. |
|
20 MΩ |
± ( 1.5% + 5d ) |
After Open CAL. |
|
200 MΩ |
± ( 2.5% + 5d ) |
After Open CAL. |
Rp/Rs 电阻 (Resistance)
|
Range |
Accuracy 100 Hz/120 Hz |
Accuracy 1000 Hz |
Accuracy 10 KHz |
Accuracy 100 KHz |
Remark |
|
20 Ω |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 1.2% + 5d ) |
± ( 2.5% + 5d ) |
After Short CAL. |
|
200 Ω |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
|
|
2000 Ω |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
|
|
20 KΩ |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
|
|
200 KΩ |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
± ( 0.8% + 5d ) |
|
|
2000 KΩ |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 3% + 5d ) |
After Open CAL. |
|
20 MΩ |
± ( 1.5% + 5d ) |
± ( 2.5% + 5d ) |
± ( 2.5% + 5d ) |
------------------- |
After Open CAL. |
|
200 MΩ |
± ( 2.5% + 5d ) |
± ( 6% + 5d ) |
|
|
After Open CAL. |
( Cp/Cs ) : D ≦ 0.1 电容 (Capacitance)
|
Range |
Accuracy 100 Hz/120 Hz |
Accuracy 1000 Hz |
Accuracy 10 KHz |
Accuracy 100 KHz |
Remark |
|
20 pF |
± ( 2.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
After Open CAL. |
|
200 pF |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
After Open CAL. |
|
2000 pF |
± ( 1.2% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
After Open CAL. |
|
20 nF |
± ( 1.0% + 5d ) |
± ( 1% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
|
200 nF |
± ( 1.0% + 5d ) |
± ( 1% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
|
2000 nF |
± ( 1.0% + 5d ) |
± ( 1% + 5d) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
|
20 uF |
± ( 1.0% + 5d ) |
± ( 1% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
|
|
200 uF |
± ( 1.0% + 5d ) |
± ( 1% + 5d ) |
± ( 2% + 5d ) |
------------------- |
After Short CAL. |
|
2000 uF |
± ( 2% + 5d ) |
± ( 2% + 5d ) |
|
|
After Short CAL. |
|
20 mF |
± ( 3% + 5d ) |
------------------- |
|
|
After Short CAL. |
( Lp/Ls ) : D ≦ 0.1 电感 (Inductance)
|
Range |
Accuracy 100 Hz/120 Hz |
Accuracy 1000 Hz |
Accuracy 10 KHz |
Accuracy 100 KHz |
Remark |
|
20 uH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
After Short CAL. |
|
200 uH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
After Short CAL. |
|
2000 uH |
± ( 1.5% + 5d ) |
± ( 1.5% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
|
20 mH |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
|
200 mH |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
|
2000 mH |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
------------------- |
|
|
20 H |
± ( 1.0% + 5d ) |
± ( 1.0% + 5d ) |
|
|
|
|
200 H |
± ( 1.0% + 5d ) |
± ( 1.5% + 5d ) |
|
|
|
|
2000 H |
± ( 2% + 5d ) |
------------------- |
|
|
After Open CAL. |
